Valve identification function

The identification of valve is of great significance to the correct use of valve, welding repair of valve parts, repair of valve parts and replacement of valve parts in case of lack of valve drawing data, missing of name plate and incomplete valve parts. The identification, material identification and identification of valves are described as follows:

Learn from "basic knowledge of valve", according to the name plate and mark on the valve and the paint color on the valve. It can directly identify the type, structure, material, nominal diameter, nominal pressure (or working pressure), suitable medium, temperature and closing direction of the valve.

1. The name plate is fixed on the valve body or handwheel. The data on the name plate is complete, which reflects the basic characteristics of the valve. According to the manufacturer on the name plate, ask for the drawing and data of the valve from the production plant, and refer to the repair content according to the factory date. According to the service conditions provided on the name plate, determine the material and form of replacement gasket and packing, and determine the material to replace other valve parts

2. The mark is to mark the valve nominal pressure, working pressure, nominal diameter and medium flow direction on the valve body by casting, printing and other methods. There is also a mark on the valve - opening indicator, which has a scale mark for opening or an arrow indicating opening and closing. The upper end of throttle valve and Non rising stem gate valve is equipped with opening indicator, and the hand wheel is marked with an arrow pointing to the closing direction. A straight groove is engraved on the end face of the valve stem. The notch is consistent with the valve channel to indicate opening, and the groove is closed when the groove is 90 ° to the channel.

3. The valve is coated with various kinds of paint, not only for rust prevention and good-looking. It is to facilitate identification of the valve material. Indicates painting of valve body material. Indicates the painting of sealing surface material.

In order to see its structure, material and basic characteristics from the appearance of the valve, it is required to cast, print or install a name plate on the valve body to indicate the valve model, nominal diameter, medium flow direction and factory name, and paint different colors on the valve body, hand wheel and flange outer edge as required.

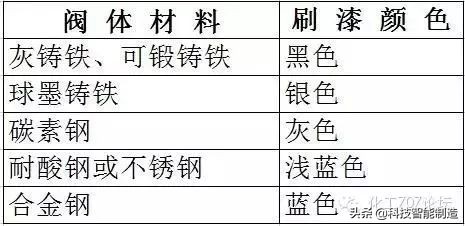

According to jb106-59 one machine department standard, the paint indicating the valve body material should be painted on the non machined outer surface of the valve body. The relationship between the color and the valve body material is as follows:

valve

However, acid resistant steel or stainless steel valve bodies may not be painted. Non ferrous valve body, no need to paint.
